UPC Series Bin Lift

LOW LEVEL MANUAL BAR LIFTING SYSTEM



Trade binlift offering a robust build and safe operation which has proved itself in markets worldwide.

Compatible with a large range of containers.



YYYNNNN Bin Icon Strip.svg

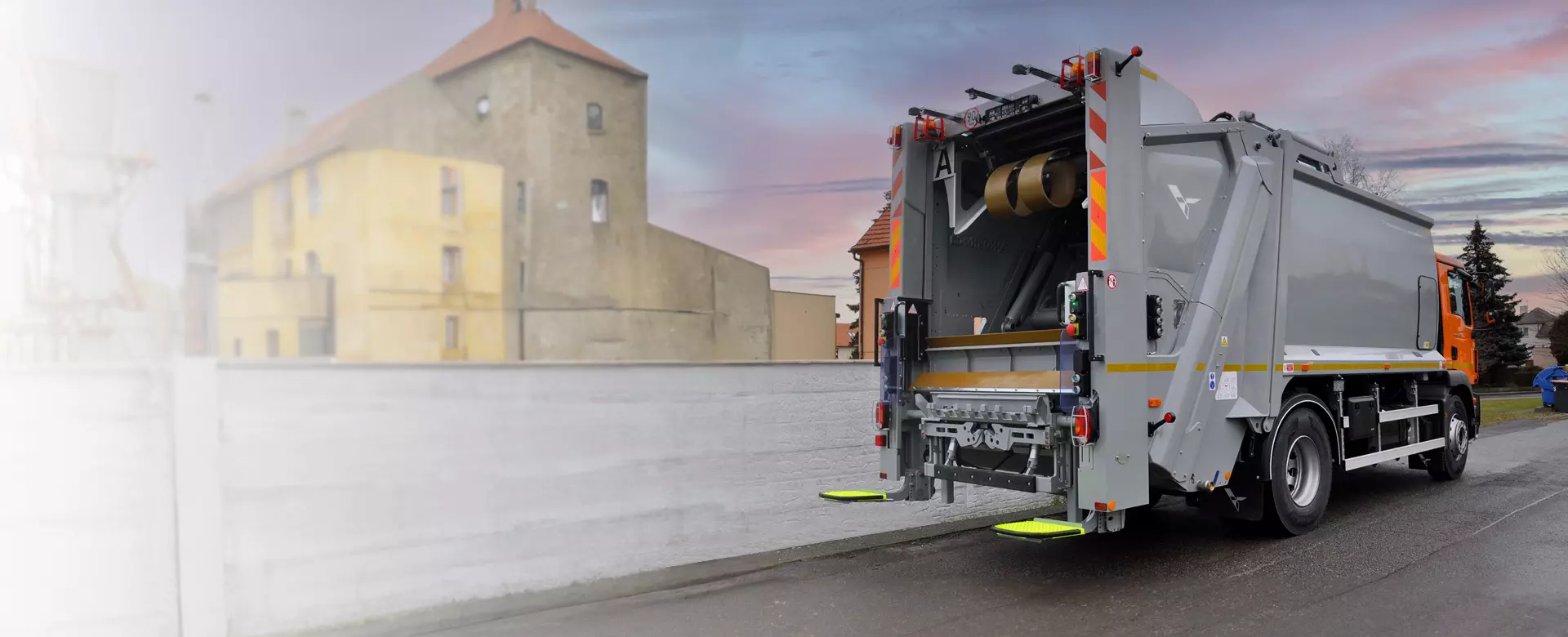

The UPC is a trade binlift offering a robust build and safe operation which has proved itself in markets worldwide. It can handle 2 and 4-wheel bins. Its unique design has a low number of moving parts and gives a short overhang when compared to other designs.

  • Compact design with minimum overhang to reduce risk of rear axle overloading
  • Simple lever or push button operation
  • Narrow and Wide versions to perfectly match all Olympus models
  • Low weight design to to help optimise and achieve higher payloads
  • Integrated mounting with Olympus
  • Can be upgraded to handle skips with the addition of the industrial skip arm option

UPC 800

SPECIFICATIONS

  • Cycle Time: 2-wheel containers 11 - 12 sec. 4-wheeled 13 - 14 sec
  • Handling Capacity: 800kg
  • Noise Level: < 65dB(A)
  • Mounting Method: Frame mounted on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 725kg
  • Hydraulic Requirements: 46 l/min., 160 bar
  • Auto-Gather: Option
  • Diagnostic Display: No

UPC 500

SPECIFICATIONS

  • Cycle Time: 2-wheel containers 11 - 12 sec. 4-wheeled 13 - 14 sec
  • Handling Capacity: 500kg
  • Noise Level: < 65dB(A)
  • Mounting Method: Frame mounted on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 675kg
  • Hydraulic Requirements: 46 l/min., 160 bar
  • Auto-Gather: Option
  • Diagnostic Display: No
